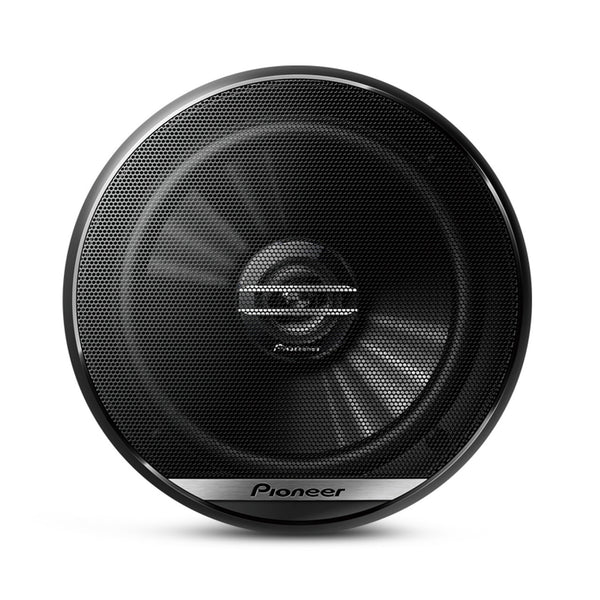

Pioneer TS-G1620F-2 6.5" 300W 2-Way Coaxial Speakers

Delivers Higher Power Handling and Deeper Bass

Our TS-G1620F-2 speakers are excellent choices to replace a bad set of factory 6-1/2″ speakers. Their two-way design handles 250 watts max. power (40 watts nominal) and feature Pioneer’s extremely strong and lightweight Injected Molded Polypropylene™ (IMPP) composite cone woofer, for improved sensitivity and reduced distortion.

You don’t get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the 1-3/16″ Balanced dome tweeter reproduces highs with great performance and musicality.

These speakers are designed with a shallow mounting depth for easy install into a wide variety of vehicles.

IMPP Cone Construction
Mica reinforced IMPP cone for deeper and richer bass response.

Features:

• 300 Watts Max Power (40 Watts Nominal)
• Injected Molded Polypropylene™ (IMPP) with MICA Composite Cone Woofer
• 1-3/16″ Balanced Dome Tweeter

Specifications:

GENERAL

• Size 6.5"
• Design 6.5" Coaxial 2-Way
• Tweeter Design 30mm Balanced Dome
• Tweeter Composition Polyethylene Terephthalate (PET)
• Woofer Composition Injected Molded Polypropylene™ (IMPP) with MICA
• Woofer Surround Rubber Coated Cloth
• Woofer Magnet Composition Ferrite

INSTALLATION SPECIFICATION

• Max. Music Power (Nominal) 300W MAX (40W Nom)
• Frequency Response 31 Hz to 18 kHz
• Sensitivity (1W/1 m) 89 dB
• Impedance 4Ω
• Mounting Depth 1-3/4" (in.)
• Cut-Out Dimensions 5" (in.)
