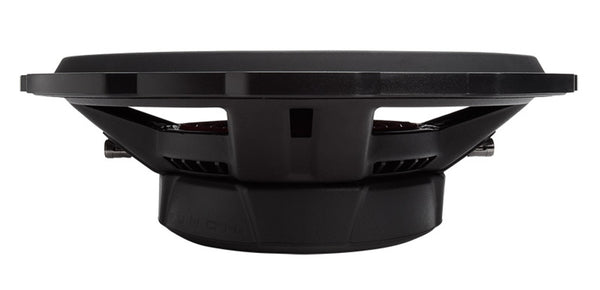

Rockford Fosgate P3SD2-12 Punch 12" P3S Shallow 2-Ohm DVC Subwoofer (PRE-ORDER ONLY)

PRE-ORDER ONLY, WAIT TIME MAY VARY.

Delivers “Punch” Even When Depth Is Limited

Rockford Fosgate P3S 12" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD2-12 features Dual 2-Ohm voice coils for wiring flexibility and 400 Watts RMS power handling.

The Rockford Fosgate P3S 12" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

Features:

• M-Roll Santoprene™ surround
• StampCast basket with integrated spider venting
• Anodized aluminum cone and dustcap
• Dual linear spider with embedded 16 AWG tinsel leads
• Diamond cut cast aluminum trim ring with optional grille
• Shallow Motor Assembly
• Optimized for both sealed and vented enclosures

Specifications:

• Size 12"
• Nominal Impedance Dual 2-Ohm
• Power Handling (Watts RMS) 400 Watts RMS, 800 Watts Max
• Magnet Weight (oz) 51 oz. (1.45 kg.)
• Voice Coil Diameter 2.5" (65.5 mm)
• Shipping Weight 13.25 Lbs. (6.01 kg.)
• SPL (dB @ 1w/1m) 85
• Fs (Hz) 34
• Qts 0.67
• Vas (Liters) 35.3
• Cutout Diameter 11.22 in. (285.0 mm)
• Woofer Displacement 0.086 cu. ft. (2.45 Liters)
• Speaker Connector Dual 10 AWG Compression
• Mounting Depth 3.65 in. (92.5 mm)
• Qes 0.75
• Qms 6.60
• Xmax (mm) 8.4
• CEA-2031 Compliant
• Re (Ohms) 3.40
• Le (mH) 2.8
• Sd (cm2) 500
• Subwoofer Type Shallow
• Voice Coil Type Dual Voice Coil
• Sealed Box Volume (Vb) 1.0 cu. ft. (28.3 Liters)
• Vented Box Volume (Vb) 1.25 cu. ft. (35.3 Liters)
