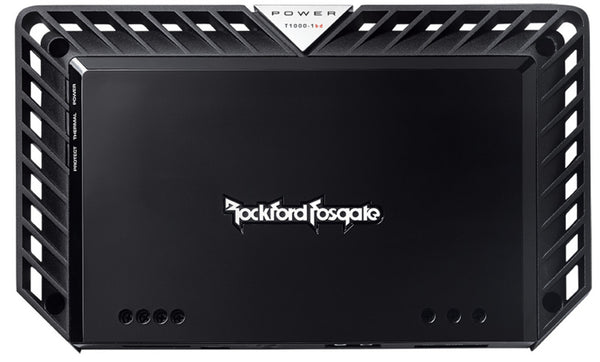

Rockford Fosgate T1000-1BDCP Power 1,000 Watt Class-BD Constant Power Amplifier (PRE-ORDER ONLY)

PRE-ORDER ONLY, WAIT TIME MAY VARY.

Most Powerful Amplifier on the Market!

The Power T1000-1BDCP is a 1,000 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T1000-1BDCP is optimized exclusively for use with subwoofers.

The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1000-1BDCP is based on the legendary T1000-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. The T1000-1BDCP, pumps out a heart-stopping Kilowatt, enough power for any reasonably sane subwoofer system.

Features:

• 24dB/octave crossover
• 4 Gauge power/ground connectors
• Audiophile grade speaker connections
• MOSFET power supply
• MOSFET output stage
• RCA pass-thru outputs
• Infrasonic filter

Specifications:

• CEA-2006 Compliant
• Number of Channels 1
• Total Power (Sum of Rated Power) 1000 Watts RMS
• Rated Power (RMS Continuous Power) 700 Watts x 1 @ 4-Ohm, 1000 Watts x 1 @ 2-Ohm, 1000 Watts x 1 @ 1-Ohm
• Dynamic Power (PVC/PowerCube®) 772 Watts x 1 @ 4-Ohms, 1299 Watts x 1 @ 2-Ohms, 1395 Watts x 1 @ 1-Ohm
• Bridgeable No
• Frequency Response 20Hz to 250Hz +/-0.5dB
• Input Sensitivity 150 mV to 4 V
• Circuit Topology Class Class BD
• Efficiency (average) 85.6% @ 4-Ohm, 82.1% @ 2-Ohm, 70% @ 1-Ohm
• Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%, 2-Ohm: <1.0%, 1-Ohm: <1.0%
• Signal Input 1 RCA pair
• Signal Output 1 RCA pair
• Tone Controls Bass: 0dB to +18dB @ 45Hz
• Crossover Controls Low-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth, Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
• Remote Controls Optional Remote PEQ (overrides built-in Punch Bass)
• Visual Indicators Power (Blue LED), Thermal (Red LED), Protect (Yellow LED)
• Power Wire Gauge 4 AWG
• Power Input Connector Block
• Speaker Wire Gauge 8 AWG to 18 AWG
• Speaker Output Connector Block
• Cooling Convection
• Operating Voltage 9 - 16 VDC
• Recommended Fuse (not included) 150 A
• Average Current Draw (13.8V Music) 70 A
• Max. Current Draw (13.8V Sinewave) 140 A
• Suggested Alternator 100 A
• Dimensions (H x W x D) 2.14 x 8.14 x 13.66 (in)/5.44 x 20.68 x 34.69 (cm)
• Shipping Weight 12.2 lbs. (5.53 Kg.)
