Delivers Loud, Clear, Accurate Bass, and Lights the Way for Your Journey!

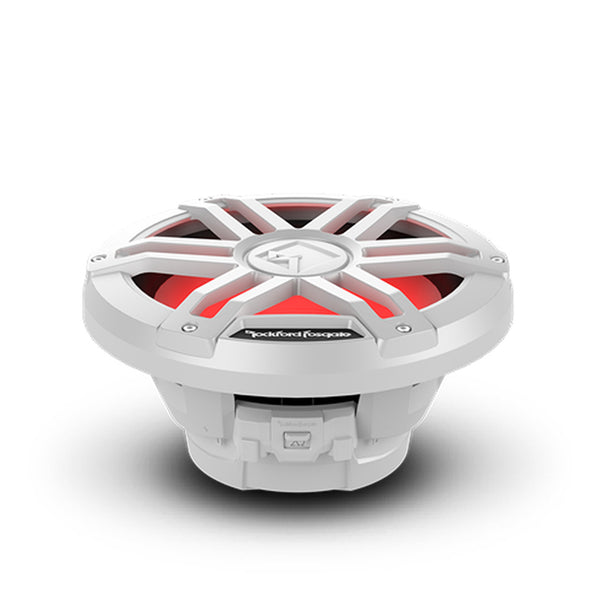

The M1D4-10 Color Optix™ 10” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IP67 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.
The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.
Color Optix™ Experience
Experience the Color Optix™ speaker and subwoofer line from Rockford Fosgate. Designed for watercraft of all kinds, they are Element Ready to withstand water, salt, and UV rays.
Features:
- Optically clear UV stable RGB Lighting Encapsulation
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Vented motor design with water-repelling nano coated mesh screen
- 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
- Fully insulated silicone tinsel leads
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Zinc Nickel-plated Marine grade brass connection terminals
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Linear Synthetic Fiber Blend Spiders
- Santoprene VAST Surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Co-molded surround and mineral filled polypropylene cone body
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
Specifications:
- Size 10"
- Power Handling (Watts RMS) 300 Watts RMS / 1200 Watts PEAK
- Nominal Impedance (Ohms) 2 -Ohm or 8-Ohm Switchable
- Voice Coil Diameter 2" (50mm)
- Voice Coil Type Dual Voice Coil
- Frequency Response 20 Hz - 750 Hz
- Magnet Weight (oz) 47.70 oz. (1.35 Kg)
- Fs (Hz) 37
- Re (Ohms) 7.5
- Le (mH) 3.87
- Sd (cm2) 394.1
- Sealed Box Volume (Vb) 1.1 cu. ft. (31.15 Liters)
- Vented Box Volume (Vb) 1.45 cu. ft. (41.06 Liters)
- Qms 7.23
- Qes 0.51
- Qts 0.47
- Vas 39.3
- SPL (dB @ 1w/1m) 91.5
- Xmax (mm) 7.0
- Woofer Displacement 2.80 cu. ft. (0.10 Liters)
- Speaker Connector Deutsch™
- Cutout Diameter 8.90 in. (226 mm)
- Mounting Depth 4.23 in. (107.4 mm)
- Shipping Weight 8.6 Lbs. (3.9 Kg)
