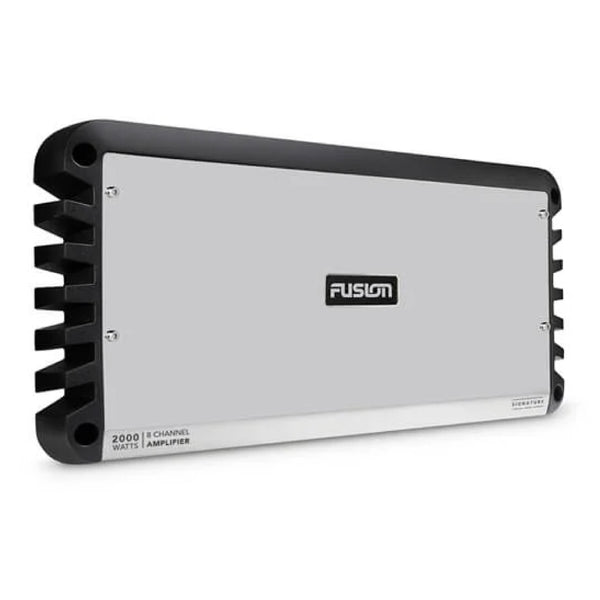

Fusion SG-DA82000 Signature Series 8 Channel 2000 Watt Marine Amplifier

Sale price $1,179.00 Regular price $1,199.00

The Fusion SG-DA82000 Signature Series 8 Channel 2000 Watt Marine Amplifier is purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive environmental protection available — delivering a Signature performance out on the water.

Main Features:

  • Class-D amplifier design delivers higher efficiency and greater output.
  • Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.
  • Conformal coated PCBs provide extra protection from the marine elements.
  • Rigid aluminium alloy heat sink is moulded for greater dissipation of heat.
  • The amplifiers are available in monoblock, 4-channel, 5-channel, 6-channel and 8-channel configurations.
  • Engineered to last season after season, the amplifiers include a supported 3-year warranty.
Specs

Designed and Engineered to True-marine™ Standards

Built on the True-Marine design philosophy from Fusion®, the Signature Series amplifiers have been tested to a high level of protection against salt fog, temperature, vibration and UV.

Class-D Amplifier Technology

The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for a whole new level of audio performance.

Superior System Performance

The Signature Series amplifiers feature built-in variable bass boost, a subsonic filter and variable low/high pass crossover filters for superior performance and enhanced system protection.

Ss Amplifiers Fan Image Full Width Desktop Eb0ae433 B7e0 434b Bc17 649a84a4a2fe

Marine-ready Design with Conformal

Helping to extend the life of your amplifiers, the Signature Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.

Sg Amplifiers Product Image 1 4ad81efc Fa71 4b7f B748 B7c87ac63561

Rigid Aluminuim Alloy Heat Sink

For increased efficiency, the rigid aluminium alloy heat sink is moulded to form a singular die-cast chassis. The fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.

Sg Amplifiers Product Image 2 2894c8ba C575 4d15 A32d 1da657cc9995

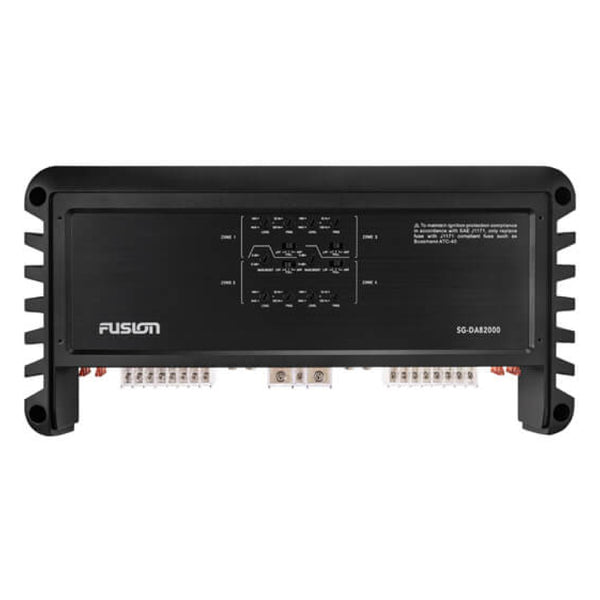

Stainless-Steel Mirror Finish

The polished stainless-steel control panel cover conceals and helps protect all cable connections and settings controls while providing an attractive finish to complement any installation.

Sg Amplifiers Product Image 3 2175a09f A06a 4ac6 Bcdc 3b22d0a6f597

2,000-Watt 8-Channel Amplifier

The Signature Series 2,000-watt 8-channel amplifier can power up to a maximum of eight pairs of speakers or four pairs of speakers and two subwoofers.

Sg Amplifiers Product Image 8 57aec32f 0d22 40e2 B2af D2c3acf897b5

Specifications

Dimensions - 42 × 21 × 5.7 cm
Marine Amplifiers - 8 Channel Amplifiers
Amplifier Class Specification - D
SG DA82000 Peak Power (Watts) Specifications - 2000 W
Total Rated Power Output 4 Ohm (Watts) - 100 W RMS x 8 @ 14.4 V input – 4 Ohm < 1% THD
Total Rated Power Output 2 Ohm (Watts) - 140 W RMS x 8 @ 14.4 V input – 2 Ohm < 1% THD
Total Rated Power Output (Watts) - 280 W RMS x 4 @ 14.4 V input – 4 Ohm Bridged < 1% THD
High Pass/Low Pass Full Rangefilter - Yes (user selectable)
Warranty - 3 year
Input Sensitivity Specs - 0.3 V – 8 V RMS (user adjustable)
HP Variable Crossover Frequency - 32 Hz – 320 Hz
LP Variable Crossover Frequency - 32 Hz – 320 Hz
Bass Boost - 0 dB – 9 dB, user adjustable (zone 3 only)
Current Consumption (StandBy) - < 1 mA @ 14.4 V input
Current Consumption (Idle) - < 2.5 A @ 14.4 V input
Current Consumption (Max) - 100 A
Fuse Rating - 4 x 40 A ATC blade-type (SAE J1171 compliant)
Other Specifications

Input impedance – 7k Ohm nominal

Operating voltage – 10.8 V – 16 V DC

Operating temperature range – 32° to 122° F (0° to 50° C)

In The Box

Four 8-gauge, self-tapping screws
3 mm hex key (for the top cover and power terminals)
2.5 mm hex key (for the speaker terminals)
Polishing cloth
Spare J1171 compliant 40 A blade-type fuses

SG DA82000 Frequency Response Specs - 10 Hz – 40 kHz (-3dB, dB @ 4 Ohm rated power)
