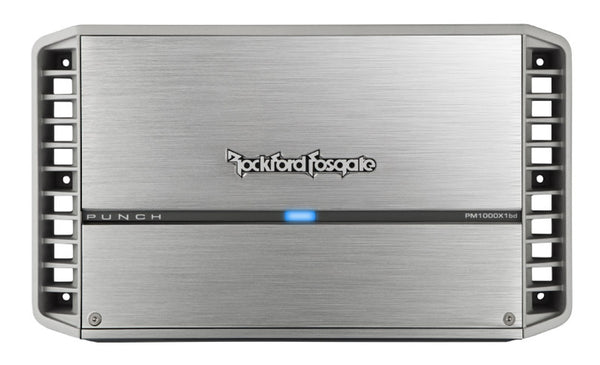

Rockford Fosgate PM1000X1BD Punch Marine 1,000 Watt Class-BD Monoblock Amplifier

The PM1000X1BD Assures Maximum Boom for Your Buck!

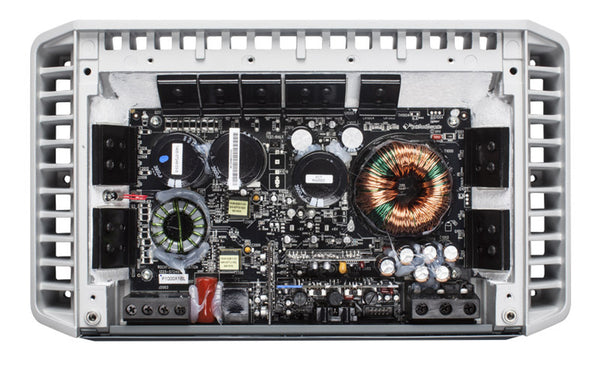

The PM1000X1BD is a 1000 Watt mono amplifier with high dynamic power using Class-BD technology and a conformal coated pc board designed for motorsport and marine applications.

With its super efficient Class-BD circuit topology, the PM1000X1BD assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.

Features:

• High level input capable with Auto Turn-On circuit
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 12dB/octave Butterworth crossover
• RCA pass-thru outputs
• On-board Punch EQ with +18dB boost @ 45Hz
• Muted turn on

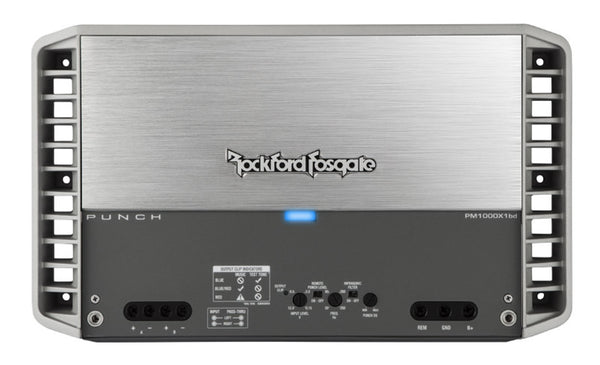

• Stealth top mounted control panel
• Cast aluminum heatsink
• Short circuit protection
• Over current protection
• Infrasonic filter
• Marine grade two part epoxy coating on circuit boards
• Marine grade stainless steel hardware

Specifications:

• Recommended Fuse (not included) 140 A
• Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%, 2-Ohm: <1.0%, 1-Ohm: <1.0%
• Efficiency (average) 86% @ 4-Ohm
• Dynamic Power (PVC/PowerCube®) 491 Watts x 1 @ 4-Ohms, 874 Watts x 1 @ 2-Ohms, 1,430 Watts x 1 @ 1-Ohm
• Input Sensitivity 150 mV - 12 V
• Shipping Weight 12.9 lbs. (5.85 Kg.)

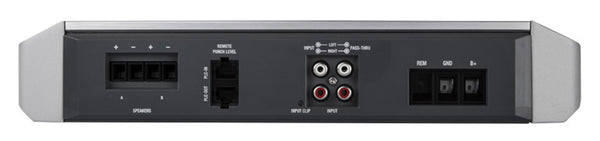

• Signal Input Hi/Low level: 1 RCA pair
• CEA-2006 Compliant
• CEA-2006 Power Rating 300W x 1 @ 4Ω, ≤1.0% THD+N
• Bridgeable No
• Number of Channels 1
• Suggested Alternator 100 A
• Operating Voltage 9 - 16 VDC
• Max. Current Draw (13.8V Sinewave) 130 A
• Rated Power (RMS Continuous Power) 300 Watts x 1 @ 4-Ohm, 500 Watts x 1 @ 2-Ohm, 1000 Watts x 1 @ 1-Ohm
• Average Current Draw (13.8V Music) 65 A
• Total Power (Sum of Rated Power) 1000 Watts
• Crossover Controls Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth / Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth / All-Pass: No
• Tone Controls Punch EQ2 Bass: 0dB to +18dB @ 45Hz
• Signal Output Hi/Low level: 1 RCA pair
• Speaker Output Connector Captive C-Clamp
• Power Input Connector Captive C-Clamp
• Power Wire Gauge 4 AWG
• Speaker Wire Gauge 8 AWG to 18 AWG
• Heat Sink Type Cast aluminum
• Cooling Convection
• Remote Controls Optional Punch Level Control (PLC2) Ready
• Visual Indicators Power/Protect/Thermal LED, Input Clip LED3, Output Clip LED1,2,3 / LED Color Legend: 1BLUE: <0.5% THD, 2VIOLET: 1% THD, 3RED: 10%+ THD
• Circuit Topology Class Class BD
• Frequency Response 20Hz to 250Hz +/- 1.0dB
• Dimensions (H x W x D) 2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm)
