Rockford Fosgate R2-500X1 Prime 500 Watt Monoblock Amplifier

Primed for Performance

The R2-500X1 amplifier is a 500 watt, class-D, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

Features:

• Balanced Differential Inputs with RCA Pass Through Outputs
• High Level Input Capable
• Defeat able Auto Turn On Circuit
• Features C.L.E.A.N. Set-up
• Variable Input Gain adjustment level
• R.L.C. Remote Level Control
• Variable Infrasonic Filter
• Continuously Variable On Board Punch EQ
• Top Mounted Control Panel
• Short Circuit & Over Current Protection
• CEA-2006 Compliant & CE Compliant
• Cast aluminum heat sink
• Full Range Class D
• Rollback Protection
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

Specifications:

• CEA-2006 Compliant
• CEA-2006 Power Rating
• 320W x 1 @ 4Ω
• ≤1.0% THD+N
• Number of Channels 1
• Total Power (Sum of Rated Power) 500 Watts
• Rated Power (RMS Continuous Power) 300 Watts x 1 @ 4Ω / 500 Watts x 1 @ 2Ω
• Dynamic Power (PVC/PowerCube®) 350 Watts x 1 @ 4Ω / 590 Watts x 1 @ 2Ω
• Bridgeable No
• Frequency Response 20 Hz - 250 Hz
• Input Sensitivity Low-Level: 150 mV - 4 V / High-Level: 450 mV - 12 V
• Circuit Topology Class Class D
• Efficiency (average)
• Total Harmonic Distortion (THD+Noise) 4Ω: <1.0% / 2Ω: <1.0%

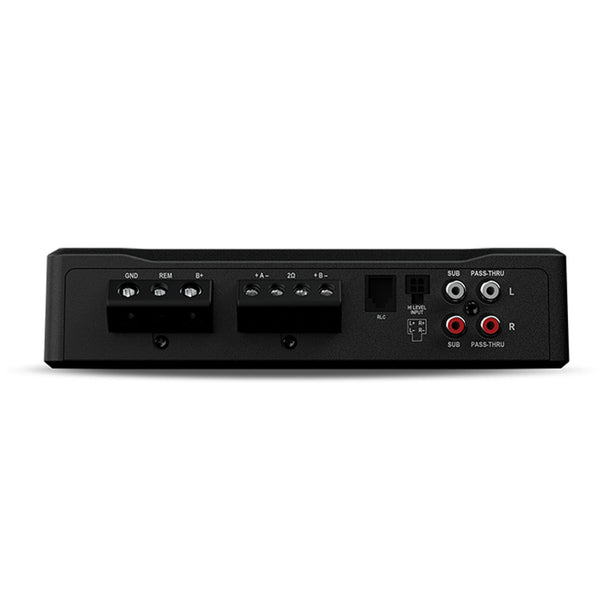

• Signal Input Low-Level: 2 RCA / High-Level: 4-Pin Molex
• Signal Output Low-Level: 2 RCA
• Tone Controls 0 to +18 dB @ 45 Hz
• Crossover Controls Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Sub Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
• Remote Controls Yes
• Visual Indicators Power/Protect / C.L.E.A.N. In / C.L.E.A.N. Out
• Power Wire Gauge 4 AWG
• Power Input Connector Compression Terminal Block
• Speaker Wire Gauge 8 AWG
• Speaker Output Connector Compression Terminal Block
• Cooling Convection
• Operating Voltage 9 - 16 VDC
• Recommended Fuse (not included) 80 A
• Average Current Draw (13.8V Music)
• Max. Current Draw (13.8V Sinewave) 52 A
• Dimensions (H x W x D) 1.9" x 6.8" x 8.5" (4.9 cm x 17.3 cm x 21.5 cm)
