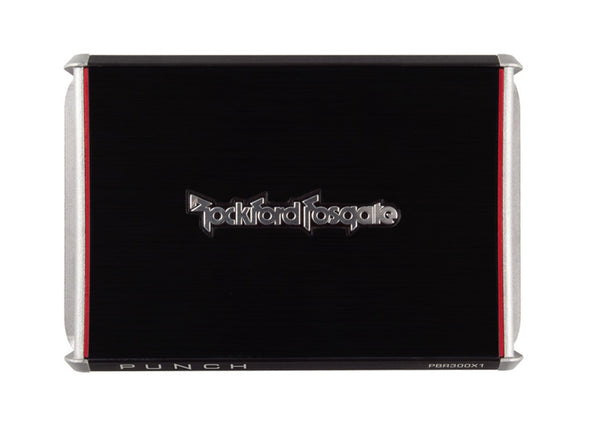

Rockford Fosgate PBR300X1 Punch 300 Watt Monoblock Amplifier

Designed for a Subwoofer System That Requires Little Space

The Punch PBR300X1 is a 300 Watt mono amplifier designed for compact subwoofer systems. This efficient amp packs a Punch in motorcycles, ATVs and hybrid-electric vehicles without sucking a lot of juice from your electrical system.

The PBR300X1 is a mono amplifier designed for a subwoofer system that requires little space. The BRT (Boosted Rail Technology) is an ultra efficient design that doesn't even use a switching power supply to generate its 300 Watts of power! The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. Great for motorcycles and recreational vehicles.

Features:

• MOSFET output stage
• 12dB/octave Butterworth crossover
• High level inputs
• Ultra compact chassis
• Variable 4-6 volt hi level DC offset voltage input turn-on control

Specifications:

• CEA-2006 Compliant
• Number of Channels 1
• Total Power (Sum of Rated Power) 300 Watts
• Rated Power (RMS Continuous Power) 75 Watts x 1 @ 4-Ohm, 150 Watts x 1 @ 2-Ohm, 300 Watts x 1 @ 1-Ohm
• Dynamic Power (PVC/PowerCube®) 96 Watts x 1 @ 4-Ohm, 189 Watts x 1 @ 2-Ohm, 326 Watts x 1 @ 1-Ohm
• Bridgeable No
• Frequency Response 20Hz - 250Hz +/-3dB
• Input Sensitivity Low-Level: 150 mV - 4 V, High-Level: 400 mV - 11 V, Circuit Topology ClassClass BR
• Efficiency (average) 75% @ 4-Ohm, 75% @ 2-Ohm, 75% @ 1-Ohm
• Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%, 2-Ohm: <1.0%
• Signal Input High/Low Input Switch, High/Low Level Input: 4-Pin harness, Hi-Level Sensitivity: Variable DC offset sensitivity
• Tone Controls External via Optional Punch EQ
• Crossover Controls Low-Pass: 35Hz - 250Hz @ 12dB/Octave Butterworth
• Remote Controls Optional PEQ provides 0dB to +18dB @ 45Hz
• Visual Indicators Power/Protect, BRT (Boost)
• Power Wire Gauge 10 AWG
• Power Input Connector Detachable Compression Terminal
• Speaker Wire Gauge 16 AWG
• Speaker Output Connector 4-Pin Harness, Wiring Convenience: 2 Negative Terminals (-), 2 Positive Terminals (+)
• Cooling Convection
• Operating Voltage 9 - 16 VDC
• Recommended Fuse (not included) 30 A
• Average Current Draw (13.8V Music) 15 A
• Max. Current Draw (13.8V Sinewave) 30 A
• Suggested Alternator 75 A
• Dimensions (H x W x D) 1.53 x 4.25 x 6.75 (in.) 3.90 x 10.8 x 17.2 (cm)
• Shipping Weight 2.76 lbs. (1.25 Kg.)
