JL Audio HD600/4 HD Series 4-Channel Amplifier

HD600/4 4-Channel Class D Full-Range Amplifier, 150 W x 4 @ 1.5-4 Ω

This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.

When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

It can also be deployed on its own as a very capable 3-channel system amplifier with 150 W x 2 to the satellites and 300 W x 1 to a subwoofer system.

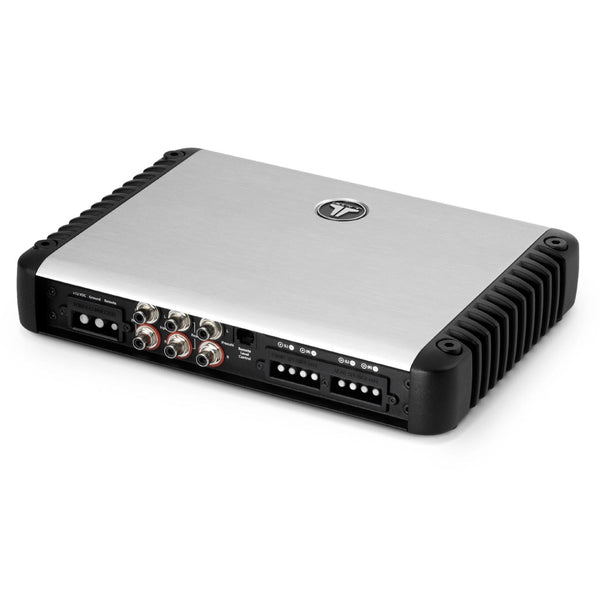

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

General features:

• JL Audio HD Series 4-Channel Class D Amplifier

• RMS Power Rating (11V-14.5V):

1. 4 ohms: 150 watts x 4 chan.
2. 3 ohms: 150 watts x 4 chan.
3. 2 ohms: 150 watts x 4 chan.
4. 1.5 ohms: 150 watts x 4 chan.

• Bridged RMS Power Rating (11V-14.5V):

1. Bridged, 8 ohms: 300 watts x 2 chan.
2. Bridged, 6 ohms: 300 watts x 2 chan.
3. Bridged, 4 ohms: 300 watts x 2 chan.
4. Bridged, 3 ohms: 300 watts x 2 chan.

• MOSFET power supply
• Remote bass level input (HD-RLC required and sold separately)
• LED power indicators
• 4/2 channel operation
• Speaker-level inputs
• Preamp RCA outputs
• Single Cycle Control™
• Heavy duty aluminum alloy heatsink for heat dissipation
• RCA level inputs
• Screw terminals
• Variable high-pass filter (50-500 Hz, 24 dB/octave)
• Variable low-pass filter (50-500 Hz, 24 dB/octave)
• Frequency response: 20-20,000 Hz
• Optional wired remote level control: JL Audio HD-RLC
• Optional stacking equipment for HD amplifiers: JL Audio HD Stack Kit
• Dimensions: 10-13/16"L x 8-7/8"W x 1-15/16"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
