Rockford Fosgate PEQ Remote Punch EQ

Wired remote Punch equalization control for select 2007 and newer amplifiers.

This remote Punch EQ offers 0dB to +18dB boost @ 45Hz and/or a hinge treble boost 0dB to +12dB @ 12kHz. Cable and mounting hardware included. For use with select 2007 and newer PUNCH & POWER amplifiers.

Features:

• Remote wired bass/treble boost
• 0dB to +18dB bass boost @ 45 Hz
• 0dB to +12dB treble boost @ 12.5 kHz
• Bass/Treble filtering based upon in-board amplifier crossover setting (HP-LP-AP)
• Controls bass on rear outputs of 4-channel amplifiers
• Conveniently mount under dash, inside center console or glovebox

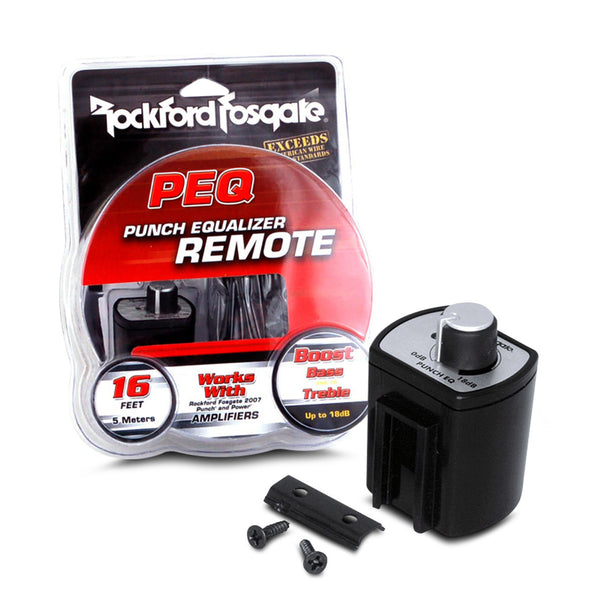

• Includes bass knob, cable, mounting clip, mounting screws

Specifications:

• Connector Type CAT5 (8-conductor non-flipped)

Compatible Models:
2012-2014

• Punch PBR300X2
• Punch PBR500X1

2011-2014

• Punch PBR300X1
• Power T800-4ad
• Power T1000-4ad

2011-2012

• Punch P1000X1D
• Punch P1000X5D

2010-2014

• Power T500-1bdCP
• Power T1000-1bdCP
• Power T1500-1bdCP
• Power T2500-1bdCP

2010-2012

• Punch P400-1
• Punch P500-4
• Punch P700-1bd

2009-2012

• Punch P300-2
• Punch P500-1bd

2009-2010

• Power T1000-4

2009

• Power T1000-1bd
• Power T2500-1bd

2007-2014

• Power T400-2
• Power T400-4
• Power T600-2
• Power T600-4

2007-2012

• Punch P200-2
• Punch P300-1
• Punch P400-2
• Punch P400-4
• Punch P500-2
• Punch P1000-1bd

2007-2009

• Power T500-1bd
• Power T1500-1bd
