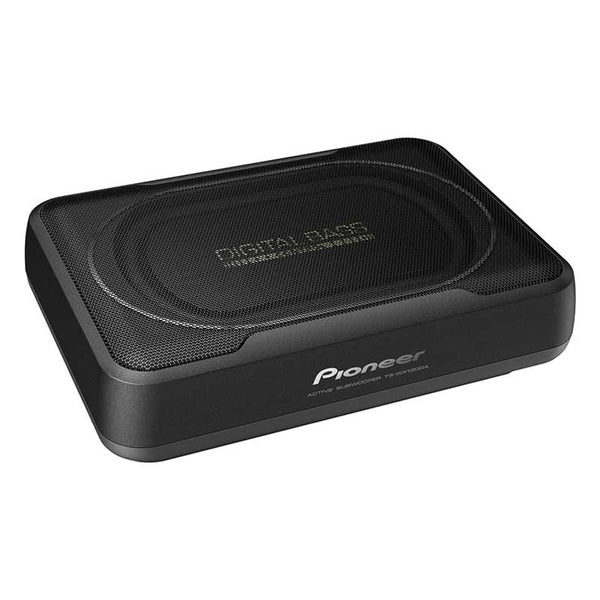

Pioneer TS-WX130DA Class-D Space-Saving Active Subwoofer

This Sub Has the Ability to Fit Under Seats, Behind Seats or Inside Small Storage Compartments!

The TS-WX130DA is extremely compact, measuring 11 inches x 7-7/8 inches with a height of only 2-3/4 inches, and is designed to be installed in various small, tight spaces where conventional subwoofers cannot fit. With the ability to fit under seats, behind seats or inside small storage compartments, the TS-WX130DA features a wide range of vehicle applications. The subwoofer combines a built-in 160-watt class D amplifier, deep throw woofer with aluminum cone specially designed acoustic suspension enclosure, and Digital Bass Control, a proprietary technology developed by Pioneer to tailor frequency response and increase the performance, the TS-WX130DA is compact while producing deep, solid bass.

Powerful Amplified Subwoofer
Combines a built-in 160-watt Class D amplifier, aluminum cone specially designed acoustic suspension enclosure, and Digital Bass Control, a technology developed by Pioneer to tailor frequency response and increase the performance, is compact while producing deep, powerful bass.

Digital Bass Control
Digital Bass Control provides two selectable listening modes, Deep and Dynamic, enhancing system optimization and tuning the output to complement various musical styles and vehicle types.

Installation Flexibility
Extremely compact, measuring 11 inches x 7-7/8 inches with a height of only 2-3/4 inches, and is designed to be installed in various small, tight spaces. With the ability to fit under seats, behind seats or inside small storage compartments, the features a wide range of vehicle applications.

Features:

• Aluminum Cone Designed for Compact Body
• Built-In 160 Watts Output Class-D Amplifier
• Digital Bass Control (Selectable Bass Mode: Deep or Dynamic)
• Wired Remote Control (Gain, LPF, Phase, Bass Mode)

Specifications:

GENERAL

• Driver Size 8" x 5-1/4" Cone
• Enclosure Dimensions 11" (W) x 7-7/8" (D) x 2-3/4" (H)
• Max. Music Power (Nominal) 160W MAX (50W Nom)
• Woofer Composition Aluminum
• Woofer Surround Urethane

AUDIO

• Frequency Response DEEP: 20Hz to 200Hz / DYNAMIC: 40Hz to 160Hz
• Sensitivity (1W/1 m) DEEP: 95dB / DYNAMIC: 100dB

What's in the Box:

• TS-WX130DA Subwoofer
• Wired Remote Control
• Wire Harness
• Installation Hardware
• Owner's Manual
• Warranty Card
