Features

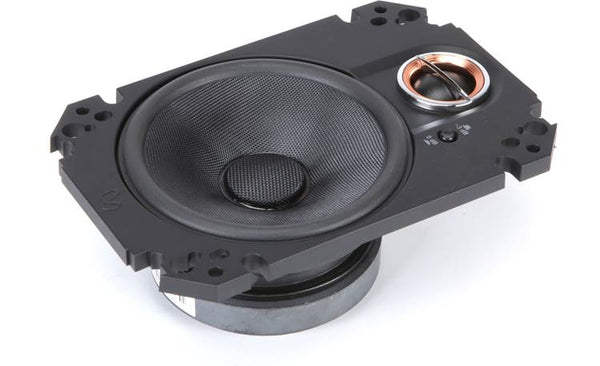

Plus One Woofer Cones: The Plus One speaker cones offer more surface area than other speakers that fit in the same size opening. This is accomplished by using a new basket design and hi-roll surround. The result is greater bass output and an increase in efficiency.
High-Output Design: The high output 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring and extracts every watt from factory receivers, increasing overall system output and efficiency (relative to 4Ω speakers). The speakers also benefit from increased power when you upgrade the wire and add aftermarket amplifiers, designed to power a 3Ω load.

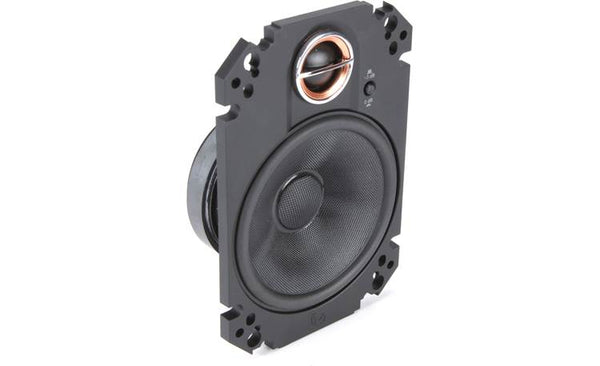

Edge Driven Dome Tweeters: Each speaker has an edge-driven silk dome tweeter. Edge-driven tweeters have better dispersion characteristics and allow for a lower crossover frequency than typical tweeters of the same size, which improves imaging. The result is improved vocals and musical clarity. The tweeter also has an output level switch; choose +0 dB (flat) or -3 dB.
Product highlights:
- 4"x6" 2-way plate-style speakers
- Plus One+ glass-fiber woofer cone with hi-roll rubber surround
- edge-driven, silk dome tweeter
- 3-ohm impedance
- grilles not included
- handles up to 60 watts RMS (180 watts peak power)
- frequency response: 75-40,000 Hz
- sensitivity: 93 dB at 2.83 volts
- top-mount depth: 1-13/16
What's in the box:
- Two 2-way speakers
- 2 Adhesive backed foam gaskets
- 2 Adhesive backed Infinity logo badges
- Eight 1" Screws
- 8 Speed clips
- Template on box
- Installation manual
