Value engineered car amplifier with JBL power and performance
The Club A754 4-channel amplifier delivers a powerful 75-Watts RMS to each of the front and rear speakers in your car. You can also bridge the amp to 2-channel mode to drive a couple subs with 200 watts RMS or 3-channel mode to drive both a pair of full range speakers and a subwoofer. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics.
Compact size
The JBL Club A754 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low level input

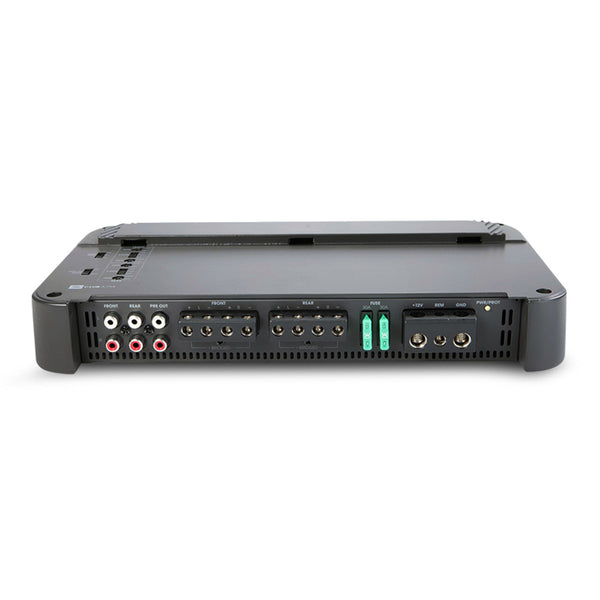

Speaker-level and low-level inputs allow the Club A754 to integrate with both aftermarket and factory car stereo systems.
Variable crossover
Unlike many amplifiers available at similar prices, the JBL Club A754 features variable electronic crossovers for precise system tuning and performance.
Low noise and distortion
The Club A754 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced engine noise.

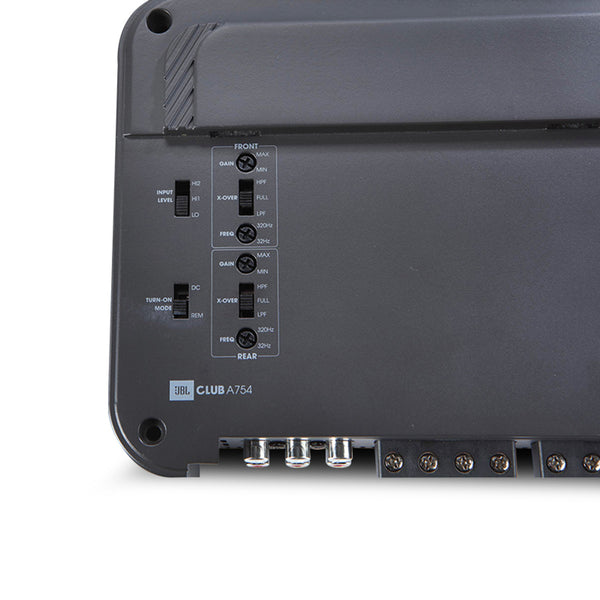

Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Club A754 from shorts, high-temperature, overvoltage and under voltage. An LED indicator is provided to let you know when one of these conditions exists.
Preamp Outputs
Using multiple amplifiers, the Club A754 has full range preamp outputs allowing you to feed an additional amplifier without using splitters.
General Specifications:
| Configuration: | 4 Channel Amplifier |
| Topology: | Class H |
| Continuous Power Output: | 75W RMS x 1 @ 4-ohm 200W RMS x 1 @ 2-ohm bridged |
| Crossover Channels: | High/Low Pass 32 - 320Hz @ 12dB/Octave channels 1/2 High/Low Pass 32 - 320Hz @ 12dB/Octave channels 3/4 |
| Subsonic Filter: | - |
| Bass Boost: | - |
| Speaker Level Inputs: | Yes, Wire-to-RCA included |
| Auto Turn-On/Off: | - |
| Remote Subwoofer Control: | - |
| Dimensions: | 320 x 51.3 x 180mm |
